Lithium Solutions
Lithium-Ion: Golf Cart Battery
Lithium-Ion: Golf Cart Battery
A high-performance LiFePO₄ battery solution engineered specifically for electric golf carts and low-speed electric mobility applications. Designed for dependable operation, fast charging, long service life and intelligent battery monitoring, the system combines automotive-grade components with an advanced smart BMS for enhanced safety, efficiency and real-time performance tracking.
Available Models
Golf Cart Battery
CLN051100EV
Designed for golf carts and electric vehicles, the CLN Golf Cart Battery delivers reliable, efficient, and long-lasting power for smooth and consistent performance. Built with advanced lithium-ion technology, it offers high energy density, fast charging, low maintenance, and dependable operation for demanding applications.
Technical Specifications
| Model | CLN051100EV |
|---|---|
| Nominal Voltage (V) | 51.2 |
| Capacity (Ah) | 100 |
| No. of Cell in Series | 16 |
| No. of Cell in Parallel | 1 |
| Total No. of Cell | 16 |
| Cell Type | Prismatic |
| Chemistry | LFP |
| Electrical | |
| Maximum cut-off voltage (V) | 57.6 (-1.6) |
| Minimum cut-off voltage (V) | 44.8 (+1.6) |
| Charging Voltage (V) | 56.0 |
| Charging Mode | CC-CV |
| Maximum charging current (A) | 40.0 |
| Maximum Continuous discharging current (A) | 100.0 |
| Peak discharging current (A) | 200.0 For 120 Sec. |
| Cell over voltage Protection | 3.6 |
| Cell over voltage release | 3.5 |
| Cell under voltage Protection | 2.8 |
| Cell under voltage release | 2.9 |
| Cycle Life @0.3C/1C @25°C | 4000 |
| DOD Level (%) | 90% |
| Protection | |
| Cell under voltage protection | Yes |
| Cell over voltage Protection | Yes |
| Over current protection | Yes |
| Short circuit protection | Yes |
| Temperature protection | Yes |
| Temperature | |
| Working Temperature (°C) | 0 – 55°C |
| Storage Temperature (°C) | 0 - 45°C |
| Communications | |
| Bluetooth For Mobile Application Showing Real Time Data. | Yes |
| RS485/ CAN Protocol Communication For Telematics. | Yes |
| Other | |
| Dimension (mm) LxWxH | (415×285×263) |
| Weight (Kg) | 50 (Approx.) |
| Power Connector | HVP Connector - 200A |
Product Features
Highly Durable Construction
Fast Charging – Full Charge in Approximately 3 Hours
Water & Vibration Resistant
Communication-Based SOC Indicator
Built-in Data Storage & Remote Troubleshooting
Smart BMS with Accurate SOC Estimation
Bluetooth & Wi-Fi Connectivity with Real-Time Monitoring
Long Service Life
Maintenance-Free Operation

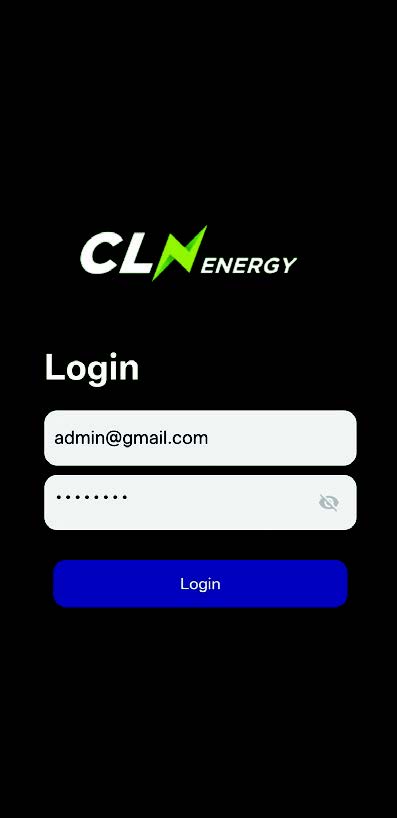

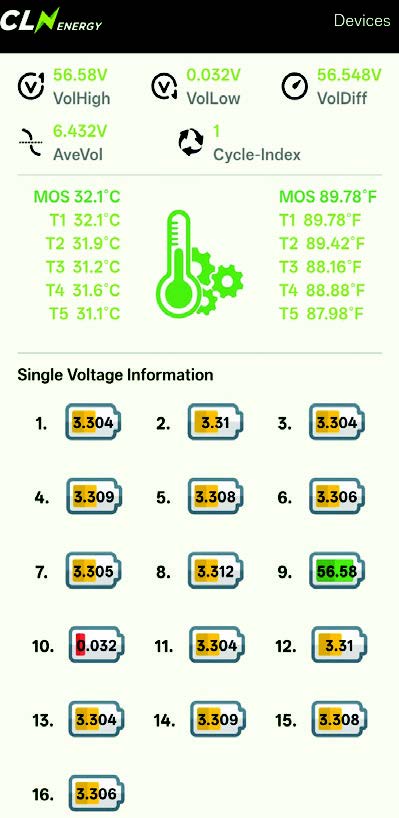

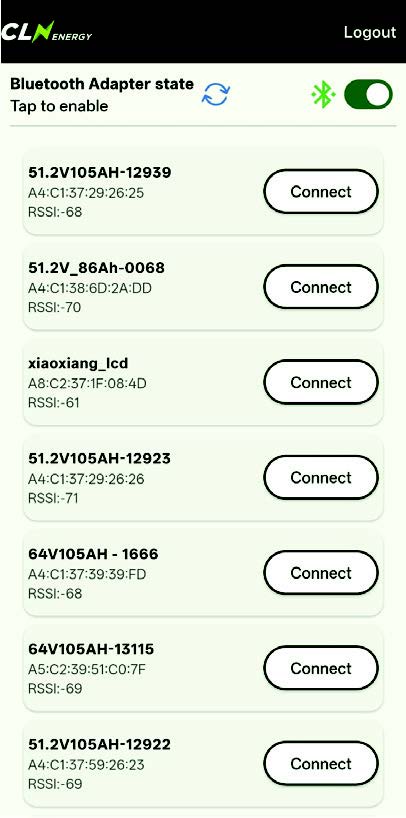

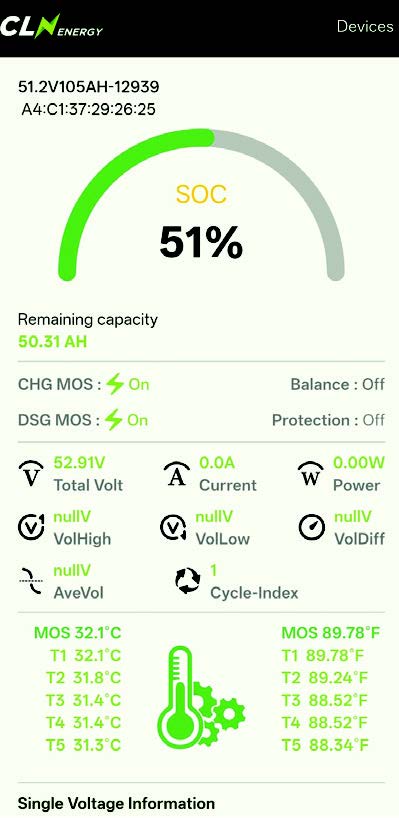

CLN App Snapshot
