Lithium Solutions

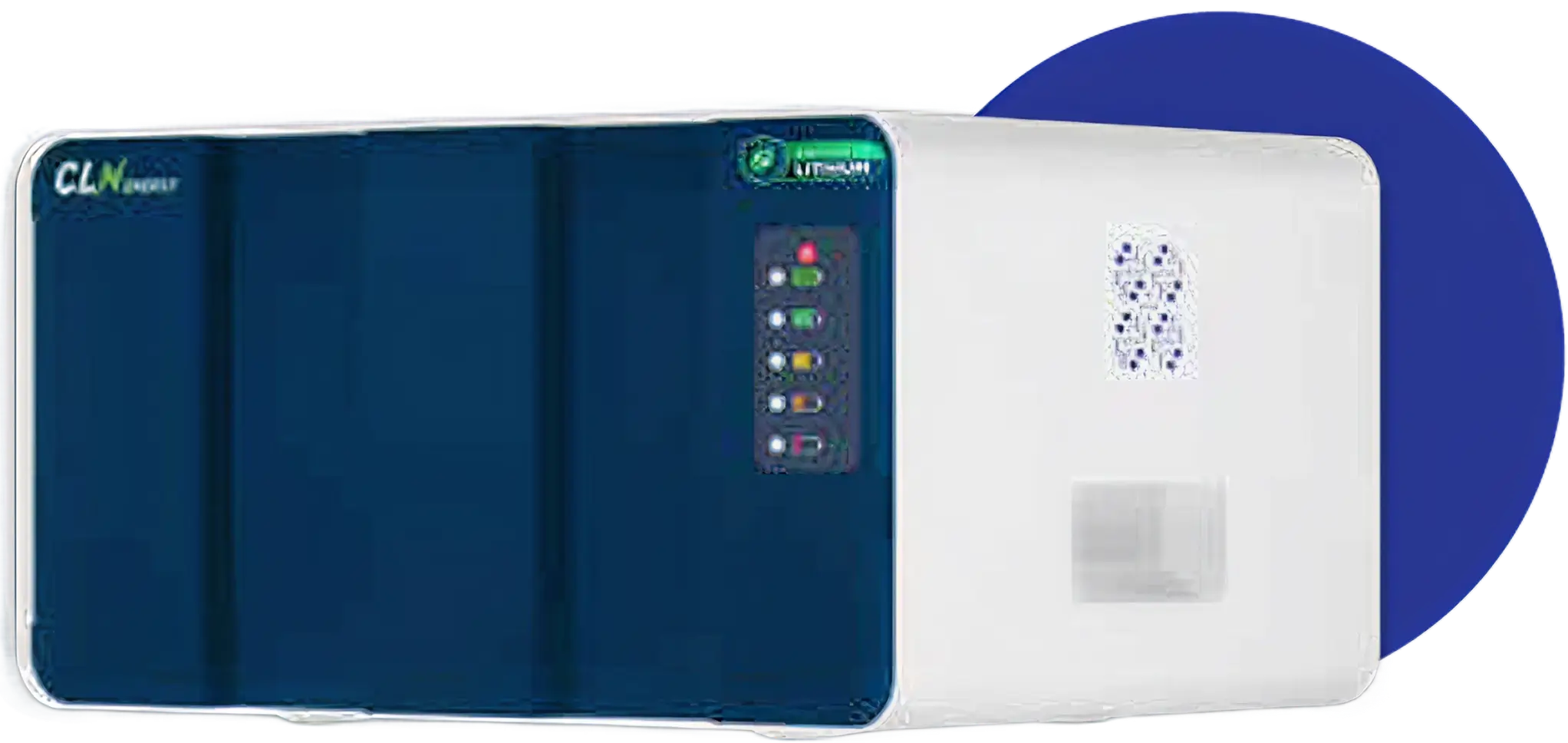

Lithium-Ion: Lead Acid (Pb) Replacement Battery
Lithium-Ion: Lead Acid (Pb) Replacement Battery
Lithium Iron Phosphate (LiFePO₄) battery system specifically designed as a replacement for conventional lead-acid batteries in residential & household applications. It offers higher energy efficiency, longer service life, and reduced maintenance requirements compared to traditional battery technologies. Engineered to meet modern household power backup needs, the system delivers reliable performance, excellent thermal stability, and a compact, space-saving design for easy installation.
Available Models
12.8V 100Ah
25.6V 100Ah
Lithium-Ion: Lead Acid (Pb) Replacement Battery
12.8V 100Ah
Engineered for residential UPS, small office backup, and solar hybrid systems.
Lead Acid (Pb) Replacement Battery
25.6V 100Ah
Engineered for residential UPS, small office backup, and solar hybrid systems.
Technical Specifications
| Model | 12.8V 100Ah | 25.6V 100Ah |
|---|---|---|
| Nominal Voltage | 12.8 V | 25.6 V |
| Capacity | 100 Ah | 100 Ah |
| Energy | 1.28 kWh | 2.56 kWh |
| Cell Type & Chemistry | Prismatic, LFP | Prismatic, LFP |
| BMS Type | Smart | Smart |
| Charging Voltage | 14 V | 28 V |
| Maximum Cut-off Voltage | 14.4 V (±0.4) | 28.8 V (±0.4) |
| Minimum Cut-off Voltage | 10.0 V (±0.4) | 20.0 V (±0.4) |
| Recommended Charging Current | 30 A | 30 A |
| Maximum Charging Current | 50 A | 50 A |
| Recommended Discharge Current | 50 A | 50 A |
| Maximum Discharge Current | 100 A | 100 A |
| Cycle Life (95% DOD, 25°C, 0.5C/0.5C) | 3,000 cycles | 3,000 cycles |
| Cell Under-voltage Protection | Yes | Yes |
| Cell Over-voltage Protection | Yes | Yes |
| Over-current Protection | Yes | Yes |
| Short-circuit Protection | Yes | Yes |
| Temperature Protection | Yes | Yes |
| Working Temperature | 0 – 60°C | 0 – 60°C |
| Storage Temperature | 0 – 45°C | 0 – 45°C |
| Weight | 17 kg (approx.) | 25 kg (approx.) |
| Dimensions (L×W×H) | 325 × 250 × 250 mm | 400 × 265 × 255 mm |
| Communication | As Per Requirement | As Per Requirement |
| Connector | Through-Wall Connector | Through-Wall Connector |
| IP Protection | IP20 | IP20 |
