Telecom

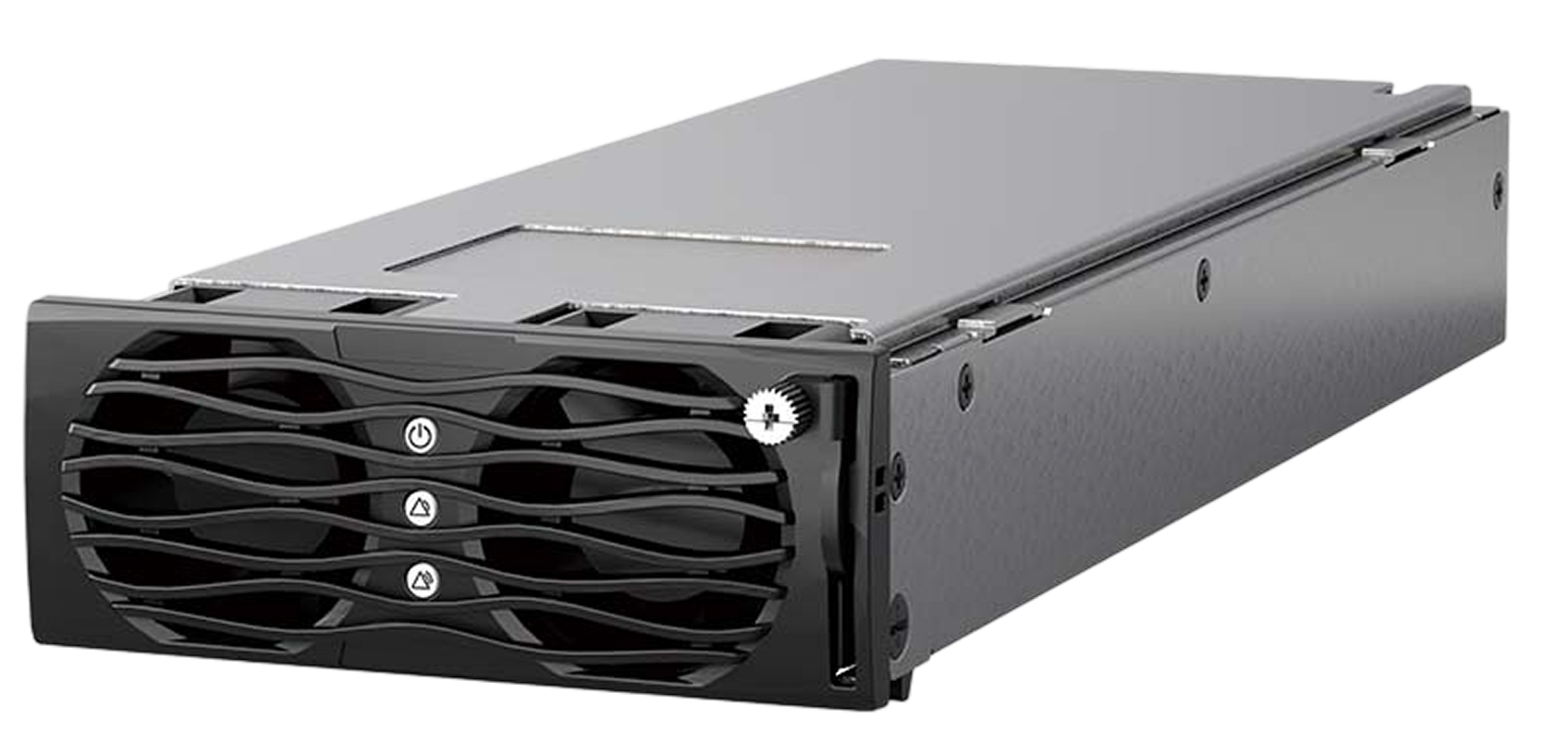

Rectifier Module
Rectifier Module
Modular rectifiers with advanced functionality and steady power adapted to the innovation of telecom power supplies.
Available Models
Rectifier Module
CLN483000RM
Reliable off-grid solar inverter for residential and small commercial backup power applications. Efficient, intelligent, and easy to install.
Rectifier Module
CLN484000RM
Reliable off-grid solar inverter for residential and small commercial backup power applications. Efficient, intelligent, and easy to install.
Technical Specifications
| Model | CLN483000RM | CLN484000RM |
|---|---|---|
| AC INPUT | ||
| INPUT VOLTAGE (NOMINAL) | 110 to 220 VAC | 110 to 220 VAC |
| INPUT VOLTAGE RANGE | 85 to 290 VAC | 85 to 290 VAC |
| MAXIMUM INPUT CURRENT | 16 A | 26 A |
| INPUT FREQUENCY | 45 to 65 Hz | 45 to 65 Hz |
| POWER FACTOR | ≥0.99 (220VAC @ 50% to 100% load) | ≥0.99 (220VAC @ 20% to 100% load) |
| DC OUTPUT | ||
| OUTPUT VOLTAGE | 220/230VAC ±5% | 220/230VAC ±5% |
| PEAK EFFICIENCY | 98 ±0.1% | 97 ±0.1% |
| MAXIMUM CAPACITY | 3000 W | 4350 W |
| MAX OUTPUT CURRENT | 62.5 A | 81.3 A |
| THD | ≤5% @ 50% to 100% load (220VAC) | ≤3% @ 50% load (220VAC) |
| CONTROL AND MONITOR | ||
| COMMUNICATION PROTOCOL | CAN | CAN |
| LED | Green-Normal; Yellow-Alarm; Red-Fault | Green-Normal; Yellow-Alarm; Red-Fault |
| ENVIRONMENT | ||
| EMC | EN55032 Class B | EN55032 Class B; EN55035; IEC61000-3-11; IEC61000-3-12 |
| SAFETY | CE, UL, TUV, UL-CB, UL 62368-1, EN62368-1, IEC62368-1 | UL 62368-1, EN62368-1, IEC62368-1 |
Key Features
Built for 5G & Telecom Infrastructure
Specially designed for telecom towers, BTS sites, data communication hubs, and critical backup applications.
Maximizing Energy Efficiency
With our super high-efficiency rectifiers, we significantly reduce power losses, ensuring lower energy costs and more sustainable network operations.
Streamlining Network Deployment
Our Telecom Power Solutions simplify the process of telecom site solarization, enabling quick integration of renewable energy for scalable infrastructure growth and reducing reliability on grid power.
Enhancing System Intelligence
Advanced monitoring and control tools enable real-time insights, optimizing the management of solar-powered telecom sites and efficient energy use.
Driving Future-Ready Networks
We empower telecom providers with sustainable, energy-efficient solutions like solarization and high-efficiency rectifiers, helping create resilient systems for tomorrow's connectivity.
Ensuring Uninterrupted Operations
Our all-time power solutions, including reliable backup systems powered by lithium-ion batteries, ensure consistent network performance, even during power outages.
