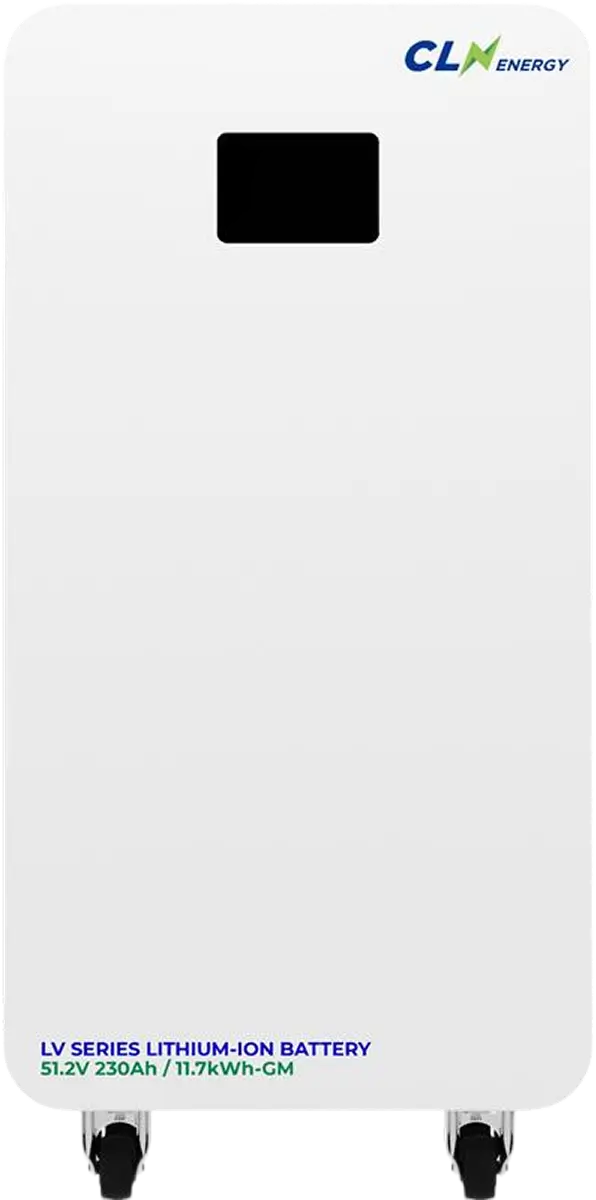

Lithium-Ion: Ground Mount Battery
This is a ground-mounted LiFePO₄ battery designed for residential energy storage and backup power applications. Equipped with an intelligent BMS, it ensures safe, reliable, and efficient operation. Compatible with both solar PV and grid systems, it stores energy for use during outages and peak demand periods. Its compact, space-saving design, long cycle life, and scalable parallel connection capability make it an ideal solution for modern homes seeking energy independence and uninterrupted power.
Available Models
Ground Mount Battery
25.6V 230Ah
Compact and reliable LiFePO₄ battery solution for solar energy storage and backup power applications.
Ground Mount Battery
25.6V 314Ah
Compact and reliable LiFePO₄ battery solution for solar energy storage and backup power applications.
Ground Mount Battery
51.2V 230Ah
Compact and reliable LiFePO₄ battery solution for solar energy storage and backup power applications.
Ground Mount Battery
51.2V 314Ah
Compact and reliable LiFePO₄ battery solution for solar energy storage and backup power applications.
Technical Specifications
| Model | 25.6V 230Ah | 25.6V 314Ah | 51.2V 230Ah | 51.2V 314Ah |
|---|---|---|---|---|
| Nominal Voltage | 25.6 V | 25.6 V | 51.2 V | 51.2 V |
| Capacity | 230 Ah | 314 Ah | 230 Ah | 314 Ah |
| Cell Type & Chemistry | Prismatic, LFP | Prismatic, LFP | Prismatic, LFP | Prismatic, LFP |
| BMS Type | Smart | Smart | Smart | Smart |
| Maximum Cut-off Voltage | 28.8 V (±0.8) | 28.8 V (±0.8) | 57.6 (±1.5) | 57.6 (±1.5) |
| Minimum Cut-off Voltage | 20.0 V (±0.8) | 20.0 V (±0.8) | 44.8 (±1.5) | 44.8 (±1.5) |
| Charging Voltage | 28 V | 28 V | 56 V | 56 V |
| Recommended Charging Current | 70 A | 90 A | 70 A | 90 A |
| Maximum Charging Current | 100 A | 100 A | 100 A | 100 A |
| Recommended Discharge Current | 100 A | 100 A | 100 A | 100 A |
| Maximum Discharge Current | 150 A | 150 A | 150 A | 150 A |
| Cycle Life (95% DOD, 25°C, 0.5C/0.5C) | 6,000 cycles | 6,000 cycles | 6,000 cycles | 6,000 cycles |
| Cell Under-voltage Protection | Yes | Yes | Yes | Yes |
| Cell Over-voltage Protection | Yes | Yes | Yes | Yes |
| Over-current Protection | Yes | Yes | Yes | Yes |
| Short-circuit Protection | Yes | Yes | Yes | Yes |
| Temperature Protection | Yes | Yes | Yes | Yes |
| Working Temperature | 0 – 60°C | 0 – 60°C | 0 – 60°C | 0 – 60°C |
| Storage Temperature | 0 – 45°C | 0 – 45°C | 0 – 45°C | 0 – 45°C |
| Weight | 53 kg (approx.) | 60 kg (approx.) | 91 kg (approx.) | 121 kg (approx.) |
| Size (L×W×H) | 540 × 375 × 261 mm | 400 × 475 × 269 mm | 770 × 430 × 243 mm | 935 × 460 × 253 mm |
| Communication | RS485 | RS485 | RS485 | RS485 |
| Connector | Through-Wall Connector | Through-Wall Connector | Through-Wall Connector | Through-Wall Connector |
| IP Protection | IP20 | IP20 | IP20 | IP20 |
| Scalability | Up to 16 units in parallel | Up to 16 units in parallel | Up to 16 units in parallel | Up to 16 units in parallel |
| Display | LCD Display | LCD Display | LCD Display | LCD Display |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years |
| Installation | Ground Mount | Ground Mount | Ground Mount | Ground Mount |
