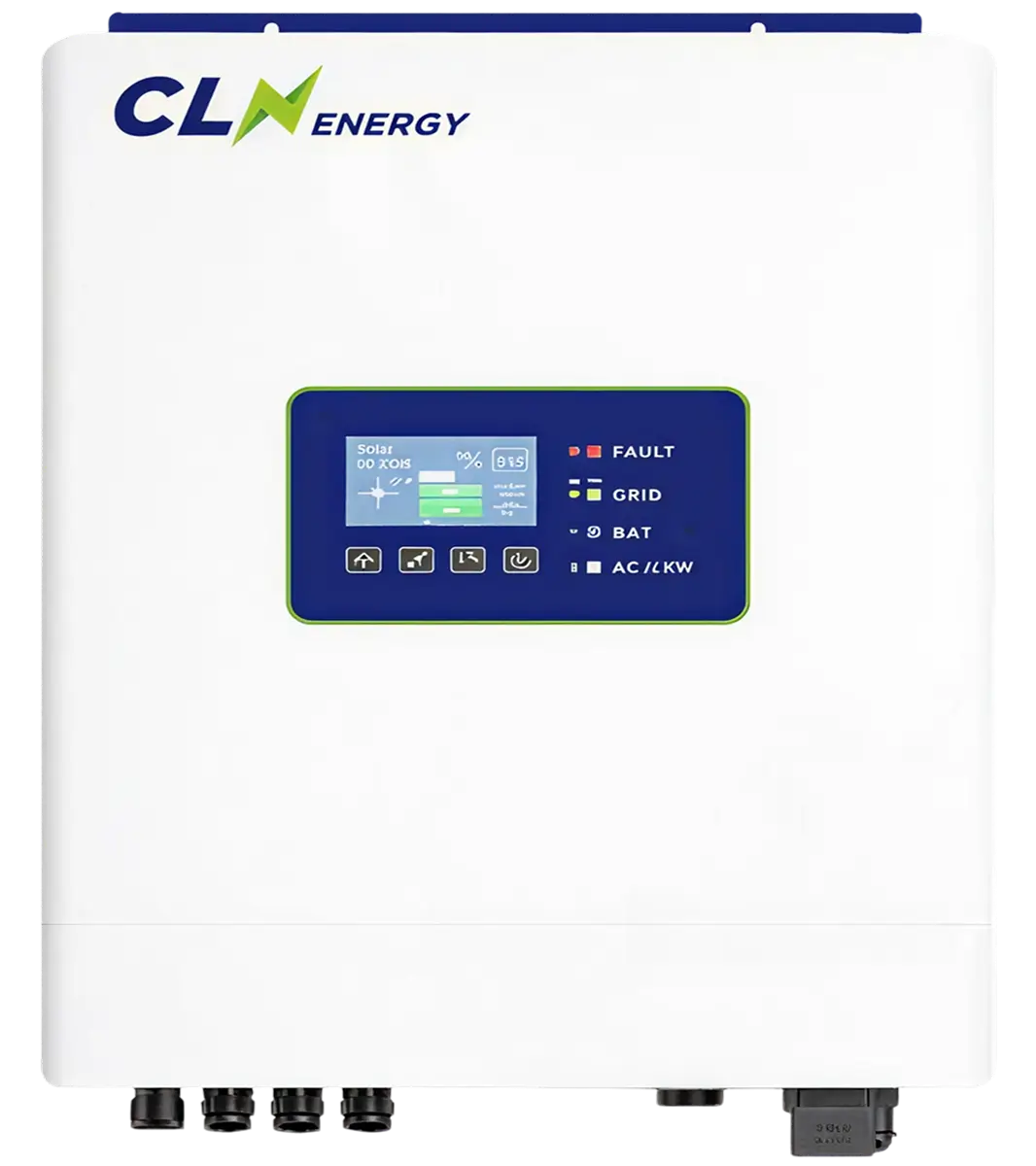

CLN Hybrid Inverter is an advanced and intelligent power solution designed for both on-grid and off-grid applications. Engineered with smart energy management technology, it efficiently integrates solar power, grid supply, and battery storage to deliver uninterrupted and optimized performance for residential and commercial systems.

Built with an IP20-rated indoor design, the ECO Series ensures reliable operation with enhanced safety and user-friendly controls. The inverter supports lithium battery compatibility with BMS communication, enabling smarter battery charging and longer backup life.

With real-time remote monitoring via mobile app and web portal, users can easily track system performance, manage loads, and optimize energy consumption anytime, anywhere.

Available Models

Hybrid

CLN-3K-SG04LP3-EU

Engineered for residential UPS, small office backup, and rural home solar systems. 17 kg, 325 × 250 × 250 mm.

Hybrid

CLN-4K-SG04LP3-EU

Engineered for residential UPS, small office backup, and rural home solar systems. 17 kg, 325 × 250 × 250 mm.

Hybrid

CLN-5K-SG04LP3-EU

Engineered for residential UPS, small office backup, and rural home solar systems. 17 kg, 325 × 250 × 250 mm.

Hybrid

CLN-6K-SG04LP3-EU

Engineered for residential UPS, small office backup, and rural home solar systems. 17 kg, 325 × 250 × 250 mm.

Hybrid

CLN-8K-SG04LP3-EU

Engineered for residential UPS, small office backup, and rural home solar systems. 17 kg, 325 × 250 × 250 mm.

Hybrid

CLN-10K-SG04LP3-EU

Engineered for residential UPS, small office backup, and rural home solar systems. 17 kg, 325 × 250 × 250 mm.

Hybrid

CLN-12K-SG04LP3-EU

Engineered for residential UPS, small office backup, and rural home solar systems. 17 kg, 325 × 250 × 250 mm.

Technical Specification

Model CLN-3K-SG04LP3-EU CLN-4K-SG04LP3-EU CLN-5K-SG04LP3-EU CLN-6K-SG04LP3-EU CLN-8K-SG04LP3-EU CLN-10K-SG04LP3-EU CLN-12K-SG04LP3-EU
BATTERY INPUT DATA
BATTERY TYPE Lead-acid or Li-ion Lead-acid or Li-ion Lead-acid or Li-ion Lead-acid or Li-ion Lead-acid or Li-ion Lead-acid or Li-ion Lead-acid or Li-ion
BATTERY VOLTAGE RANGE 40 - 60 V 40 - 60 V 40 - 60 V 40 - 60 V 40 - 60 V 40 - 60 V 40 - 60 V
MAX. CHARGING/DISCHARGING CURRENT 70 A 95 A 120 A 135 A 190 A 210 A 240 A
CHARGING STRATEGY FOR LI-ION BATTERY Self-adaption to BMS Self-adaption to BMS Self-adaption to BMS Self-adaption to BMS Self-adaption to BMS Self-adaption to BMS Self-adaption to BMS
NUMBER OF BATTERY INPUT 1 1 1 1 1 1 1
PV STRING INPUT DATA
MAX. PV INPUT POWER 6000 W 8000 W 10000 W 12000 W 16000 W 20000 W 24000 W
MAX. PV INPUT POWER WITH AC COUPLING 4800 W 6400 W 8000 W 9600 W 12800 W 16000 W 19200 W
MAX. PV INPUT VOLTAGE 800 V 800 V 800 V 800 V 800 V 800 V 800 V
START-UP VOLTAGE 160 V 160 V 160 V 160 V 160 V 160 V 160 V
MPPT VOLTAGE RANGE 200 - 650 V 200 - 650 V 200 - 650 V 200 - 650 V 200 - 650 V 200 - 650 V 200 - 650 V
RATED PV INPUT VOLTAGE 550 V 550 V 550 V 550 V 550 V 550 V 550 V
MAX. OPERATING PV INPUT CURRENT 20 + 20 A 20 + 20 A 20 + 20 A 20 + 20 A 20 + 20 A 26 + 26 A 26 + 26 A
MAX. INPUT SHORT-CIRCUIT CURRENT 30 + 30 A 30 + 30 A 30 + 30 A 30 + 30 A 30 + 30 A 39 + 39 A 39 + 39 A
NO. OF MPPT TRACKERS / NO. OF STRINGS PER MPPT 2/1 + 1 2/1 + 1 2/1 + 1 2/1 + 1 2/1 + 1 2/2 + 1 2/1 + 1
AC INPUT/OUTPUT DATA
RATED AC INPUT/OUTPUT ACTIVE POWER 3000 W 4000 W 5000 W 6000 W 8000 W 10000 W 12000 W
MAX. AC INPUT/OUTPUT APPARENT POWER 3300 VA 4400 VA 5500 VA 6600 VA 8800 VA 11000 VA 13200 VA
RATED AC INPUT/OUTPUT CURRENT 4.6/4.4 A 6.1/5.8 A 7.6/7.3 A 9.1/8.7 A 12.2/11.6 A 15.2/14.5 A 18.2/17.4 A
MAX. AC INPUT/OUTPUT CURRENT 5/4.8 A 6.7/6.4 A 8.4/8.0 A 10/9.6 A 13.4/12.8 A 16.7/16 A 20/19.2 A
MAX. CONTINUOUS AC PASSTHROUGH 45 A 45 A 45 A 45 A 45 A 45 A 45 A
PEAK POWER (OFF-GRID) 2 times of rated power, 10 s 2 times of rated power, 10 s 2 times of rated power, 10 s 2 times of rated power, 10 s 2 times of rated power, 10 s 2 times of rated power, 10 s 2 times of rated power, 10 s
POWER FACTOR ADJUSTMENT RANGE 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging
RATED INPUT/OUTPUT VOLTAGE 220/380V, 230/400V, 0.85Un-1.1Un+PE 220/380V, 230/400V, 0.85Un-1.1Un+PE 220/380V, 230/400V, 0.85Un-1.1Un+PE 220/380V, 230/400V, 0.85Un-1.1Un+PE 220/380V, 230/400V, 0.85Un-1.1Un+PE 220/380V, 230/400V, 0.85Un-1.1Un+PE 220/380V, 230/400V, 0.85Un-1.1Un+PE
RATED GRID FREQUENCY RANGE 50/45-55Hz, 60/55-65Hz 50/45-55Hz, 60/55-65Hz 50/45-55Hz, 60/55-65Hz 50/45-55Hz, 60/55-65Hz 50/45-55Hz, 60/55-65Hz 50/45-55Hz, 60/55-65Hz 50/45-55Hz, 60/55-65Hz
TOTAL HARMONIC DISTORTION THDI <3% (of nominal power) <3% (of nominal power) <3% (of nominal power) <3% (of nominal power) <3% (of nominal power) <3% (of nominal power) <3% (of nominal power)
DC INJECTION CURRENT <0.5% In <0.5% In <0.5% In <0.5% In <0.5% In <0.5% In <0.5% In
EFFICIENCY
MAX. EFFICIENCY 97.60 % 97.60 % 97.60 % 97.60 % 97.60 % 97.60 % 97.60 %
EURO EFFICIENCY 97.0 % 97.0 % 97.0 % 97.0 % 97.0 % 97.0 % 97.0 %
MPPT EFFICIENCY >99 % >99 % >99 % >99 % >99 % >99 % >99 %
EQUIPMENT PROTECTION
INTEGRATED PROTECTION DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
SURGE PROTECTION LEVEL Type II (DC), Type II (AC) Type II (DC), Type II (AC) Type II (DC), Type II (AC) Type II (DC), Type II (AC) Type II (DC), Type II (AC) Type II (DC), Type II (AC) Type II (DC), Type II (AC)
INTERFACE
DISPLAY LCD LCD LCD LCD LCD LCD LCD
COMMUNICATION WiFi, RS485, CAN WiFi, RS485, CAN WiFi, RS485, CAN WiFi, RS485, CAN WiFi, RS485, CAN WiFi, RS485, CAN WiFi, RS485, CAN
MONITOR MODE No No No No No No No
GENERAL DATA
OPERATING TEMPERATURE RANGE (°C) -40 to +60°C, >45°C derating -40 to +60°C, >45°C derating -40 to +60°C, >45°C derating -40 to +60°C, >45°C derating -40 to +60°C, >45°C derating -40 to +60°C, >45°C derating -40 to +60°C, >45°C derating
PERMISSIBLE AMBIENT HUMIDITY 0-100% 0-100% 0-100% 0-100% 0-100% 0-100% 0-100%
ALTITUDE (m) 3000 m 3000 m 3000 m 3000 m 3000 m 3000 m 3000 m
NOISE (dB) <55 dB <55 dB <55 dB <55 dB <55 dB <55 dB <55 dB
INGRESS PROTECTION IP65 IP65 IP65 IP65 IP65 IP65 IP65
INVERTER TOPOLOGY Non-isolated (Solar), Isolated (Battery) Non-isolated (Solar), Isolated (Battery) Non-isolated (Solar), Isolated (Battery) Non-isolated (Solar), Isolated (Battery) Non-isolated (Solar), Isolated (Battery) Non-isolated (Solar), Isolated (Battery) Non-isolated (Solar), Isolated (Battery)
OVER VOLTAGE CATEGORY OVC II (AC), OVC III (DC) OVC II (AC), OVC III (DC) OVC II (AC), OVC III (DC) OVC II (AC), OVC III (DC) OVC II (AC), OVC III (DC) OVC II (AC), OVC III (DC) OVC II (AC), OVC III (DC)
CABINET SIZE (W×H×D mm) 386×660×245 mm (Excluding Connectors and Brackets) 386×660×245 mm (Excluding Connectors and Brackets) 386×660×245 mm (Excluding Connectors and Brackets) 386×660×245 mm (Excluding Connectors and Brackets) 386×660×245 mm (Excluding Connectors and Brackets) 386×660×245 mm (Excluding Connectors and Brackets) 386×660×245 mm (Excluding Connectors and Brackets)
WEIGHT (kg) 35.2 Kg 35.2 Kg 35.2 Kg 35.2 Kg 35.2 Kg 35.2 Kg 35.2 Kg
TYPE OF COOLING Intelligent Air Cooling Intelligent Air Cooling Intelligent Air Cooling Intelligent Air Cooling Intelligent Air Cooling Intelligent Air Cooling Intelligent Air Cooling
WARRANTY 5 Years / 10 Years (Refer Warranty Policy) 5 Years / 10 Years (Refer Warranty Policy) 5 Years / 10 Years (Refer Warranty Policy) 5 Years / 10 Years (Refer Warranty Policy) 5 Years / 10 Years (Refer Warranty Policy) 5 Years / 10 Years (Refer Warranty Policy) 5 Years / 10 Years (Refer Warranty Policy)
GRID REGULATION IEC61727, IEC62116, CEI0-21, EN50549, NRS097, RD140, UNE217002, OVE-R25, G99, VDE-AR-N4105 IEC61727, IEC62116, CEI0-21, EN50549, NRS097, RD140, UNE217002, OVE-R25, G99, VDE-AR-N4105 IEC61727, IEC62116, CEI0-21, EN50549, NRS097, RD140, UNE217002, OVE-R25, G99, VDE-AR-N4105 IEC61727, IEC62116, CEI0-21, EN50549, NRS097, RD140, UNE217002, OVE-R25, G99, VDE-AR-N4105 IEC61727, IEC62116, CEI0-21, EN50549, NRS097, RD140, UNE217002, OVE-R25, G99, VDE-AR-N4105 IEC61727, IEC62116, CEI0-21, EN50549, NRS097, RD140, UNE217002, OVE-R25, G99, VDE-AR-N4105 IEC61727, IEC62116, CEI0-21, EN50549, NRS097, RD140, UNE217002, OVE-R25, G99, VDE-AR-N4105
SAFETY / EMC STANDARD IEC/EN61000-6-1/2/3/4, IEC/EN62109-1, IEC/EN62109-2 IEC/EN61000-6-1/2/3/4, IEC/EN62109-1, IEC/EN62109-2 IEC/EN61000-6-1/2/3/4, IEC/EN62109-1, IEC/EN62109-2 IEC/EN61000-6-1/2/3/4, IEC/EN62109-1, IEC/EN62109-2 IEC/EN61000-6-1/2/3/4, IEC/EN62109-1, IEC/EN62109-2 IEC/EN61000-6-1/2/3/4, IEC/EN62109-1, IEC/EN62109-2 IEC/EN61000-6-1/2/3/4, IEC/EN62109-1, IEC/EN62109-2
Download Datasheet

Hybrid

CLN-14K-SG05LP3-EU-SM2

Engineered for residential UPS, small office backup, and rural home solar systems. 17 kg, 325 × 250 × 250 mm.

Hybrid

CLN-15K-SG05LP3-EU-SM2

Engineered for residential UPS, small office backup, and rural home solar systems. 17 kg, 325 × 250 × 250 mm.

Hybrid

CLN-16K-SG05LP3-EU-SM2

Engineered for residential UPS, small office backup, and rural home solar systems. 17 kg, 325 × 250 × 250 mm.

Hybrid

CLN-18K-SG05LP3-EU-SM2

Engineered for residential UPS, small office backup, and rural home solar systems. 17 kg, 325 × 250 × 250 mm.

Hybrid

CLN-20K-SG05LP3-EU-SM2

Engineered for residential UPS, small office backup, and rural home solar systems. 17 kg, 325 × 250 × 250 mm.

Technical Specification

Model CLN-14K-SG04LP3-EU-SM2 CLN-15K-SG04LP3-EU-SM2 CLN-16K-SG04LP3-EU-SM2 CLN-18K-SG04LP3-EU-SM2 CLN-20K-SG04LP3-EU-SM2
Battery Input Data
Battery Type Lead-acid or Li-ion Lead-acid or Li-ion Lead-acid or Li-ion Lead-acid or Li-ion Lead-acid or Li-ion
Battery Voltage Range 40-60V 40-60V 40-60V 40-60V 40-60V
Max Charging/Discharging Current 240A 280A 300A 330A 350A
Charging Strategy for Li-ion Battery Self-adaption to BMS Self-adaption to BMS Self-adaption to BMS Self-adaption to BMS Self-adaption to BMS
Number of Battery Input 2 2 2 2 2
PV String Input Data
Max PV Access Power 28000W 30000W 32000W 36000W 40000W
Max PV Input Power 22400W 24000W 25600W 28800W 32000W
Max PV Input Voltage 800V 800V 800V 800V 800V
Start-up Voltage 160V 160V 160V 160V 160V
MPPT Voltage Range 160-650V 160-650V 160-650V 160-650V 160-650V
Rated PV Input Voltage 550V 550V 550V 550V 550V
Max Operating PV Input Current 36+36A 36+36A 36+36A 36+36A 36+36A
Max Input Short-Circuit Current 54+54A 54+54A 54+54A 54+54A 54+54A
No. of MPPT Trackers / Strings per MPPT 2 / (2+2) 2 / (2+2) 2 / (2+2) 2 / (2+2) 2 / (2+2)
AC Input/Output Data
Rated AC Output Active Power 14000W 15000W 16000W 18000W 20000W
Max AC Input/Output Apparent Power 15400VA 16500VA 17600VA 19800VA 22000VA
Max Continuous AC Passthrough 70A 70A 70A 70A 70A
Peak Power (Off-grid) 2 times rated power, 10s 2 times rated power, 10s 2 times rated power, 10s 2 times rated power, 10s 2 times rated power, 10s
Efficiency
Max Efficiency 97.60% 97.60% 97.60% 97.60% 97.60%
Euro Efficiency 97.0% 97.0% 97.0% 97.0% 97.0%
MPPT Efficiency >99% >99% >99% >99% >99%
Equipment Protection
Integrated Protection DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level Type II (DC), Type II (AC) Type II (DC), Type II (AC) Type II (DC), Type II (AC) Type II (DC), Type II (AC) Type II (DC), Type II (AC)
Interface
Display LCD LCD LCD LCD LCD
Communication Interface WiFi, RS485, CAN WiFi, RS485, CAN WiFi, RS485, CAN WiFi, RS485, CAN WiFi, RS485, CAN
Monitor Mode No No No No No
General Data
Operating Temperature Range (°C) -40 to +60°C, >45°C Derating -40 to +60°C, >45°C Derating -40 to +60°C, >45°C Derating -40 to +60°C, >45°C Derating -40 to +60°C, >45°C Derating
Permissible Ambient Humidity 0-100% 0-100% 0-100% 0-100% 0-100%
Altitude 3000 m 3000 m 3000 m 3000 m 3000 m
Noise <60 dB <60 dB <60 dB <60 dB <60 dB
Ingress Protection IP65 IP65 IP65 IP65 IP65
Inverter Topology Non-isolated (Solar), Isolated (Battery) Non-isolated (Solar), Isolated (Battery) Non-isolated (Solar), Isolated (Battery) Non-isolated (Solar), Isolated (Battery) Non-isolated (Solar), Isolated (Battery)
Over Voltage Category OVC II (DC), OVC III (AC) OVC II (DC), OVC III (AC) OVC II (DC), OVC III (AC) OVC II (DC), OVC III (AC) OVC II (DC), OVC III (AC)
Cabinet Size (W×H×D) 456 × 750 × 268 mm (Excluding Connectors and Brackets) 456 × 750 × 268 mm (Excluding Connectors and Brackets) 456 × 750 × 268 mm (Excluding Connectors and Brackets) 456 × 750 × 268 mm (Excluding Connectors and Brackets) 456 × 750 × 268 mm (Excluding Connectors and Brackets)
Weight 51.9 Kg 51.9 Kg 51.9 Kg 51.9 Kg 51.9 Kg
Type Of Cooling Intelligent Air Cooling Intelligent Air Cooling Intelligent Air Cooling Intelligent Air Cooling Intelligent Air Cooling
Warranty 5 Years / 10 Years (Depends on final installation site, refer warranty policy) 5 Years / 10 Years (Depends on final installation site, refer warranty policy) 5 Years / 10 Years (Depends on final installation site, refer warranty policy) 5 Years / 10 Years (Depends on final installation site, refer warranty policy) 5 Years / 10 Years (Depends on final installation site, refer warranty policy)
Grid Regulation IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety / EMC Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Download Datasheet

Hybrid

CLN-29.9K-SG02HP3-EU-BM3

Engineered for residential UPS, small office backup, and rural home solar systems. 17 kg, 325 × 250 × 250 mm.

Hybrid

CLN-30K-SG02HP3-EU-BM3

Engineered for residential UPS, small office backup, and rural home solar systems. 17 kg, 325 × 250 × 250 mm.

Hybrid

CLN-35K-SG02HP3-EU-BM3

Engineered for residential UPS, small office backup, and rural home solar systems. 17 kg, 325 × 250 × 250 mm.

Hybrid

CLN-40K-SG02HP3-EU-BM4

Engineered for residential UPS, small office backup, and rural home solar systems. 17 kg, 325 × 250 × 250 mm.

Hybrid

CLN-50K-SG02HP3-EU-BM4

Engineered for residential UPS, small office backup, and rural home solar systems. 17 kg, 325 × 250 × 250 mm.

Technical Specification

Model CLN-29.9K-SG02HP3-EU-BM3 CLN-30K-SG02HP3-EU-BM3 CLN-35K-SG02HP3-EU-BM3 CLN-40K-SG02HP3-EU-BM4 CLN-50K-SG02HP3-EU-BM4
Battery Input Data
Battery Type Lithium-ion Lithium-ion Lithium-ion Lithium-ion Lithium-ion
Battery Voltage Range 160-800V 160-800V 160-800V 160-800V 160-800V
Max Charging/Discharging Current 100A 100A 100A 100A 100A
Charging Strategy For Li-ion Battery Self-adaption to BMS Self-adaption to BMS Self-adaption to BMS Self-adaption to BMS Self-adaption to BMS
Number Of Battery Inputs 1 1 1 1 1
PV String Input Data
Max PV Access Power 59800W 60000W 70000W 80000W 100000W
Max PV Input Power 47840W 48000W 56000W 64000W 80000W
Max PV Input Voltage 1000V 1000V 1000V 1000V 1000V
Start-up Voltage 180V 180V 180V 180V 180V
MPPT Voltage Range 150-850V 150-850V 150-850V 150-850V 150-850V
Rated PV Input Voltage 600V 600V 600V 600V 600V
Max Operating PV Input Current 36+36+36A 36+36+36A 36+36+36A 36+36+36A 36+36+36A
Max Input Short-Circuit Current 55+55+55A 55+55+55A 55+55+55A 55+55+55A 55+55+55A
No. Of MPPT Trackers / Strings Per MPPT 3/(2+2+2) 3/(2+2+2) 3/(2+2+2) 3/(2+2+2) 3/(2+2+2)
AC Input/Output Data
Rated AC Output Active Power 29900W 30000W 35000W 40000W 50000W
Max AC Input/Output Apparent Power 29900VA 33000VA 38500VA 44000VA 55000VA
Rated AC Input/Output Current 45.4/43.4A 45.5/43.5A 53.1/50.8A 60.7/58.0A 75.8/72.5A
Max AC Input/Output Current 45.4/43.4A 50/47.9A 58.4/55.8A 66.7/63.8A 83.4/79.8A
Max Continuous AC Passthrough 200A 200A 200A 200A 200A
Peak Power (Off-grid) 1.5 times of rated power, 10s 1.5 times of rated power, 10s 1.5 times of rated power, 10s 1.5 times of rated power, 10s 1.5 times of rated power, 10s
Power Factor Adjustment Range 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging
Rated Input/Output Voltage 220/380V,230/400V 0.85Un-1.1Un 3L+N+PE 220/380V,230/400V 0.85Un-1.1Un 3L+N+PE 220/380V,230/400V 0.85Un-1.1Un 3L+N+PE 220/380V,230/400V 0.85Un-1.1Un 3L+N+PE 220/380V,230/400V 0.85Un-1.1Un 3L+N+PE
Rated Input/Output Grid Frequency/Range 50(45-55),60(55-65)Hz 50(45-55),60(55-65)Hz 50(45-55),60(55-65)Hz 50(45-55),60(55-65)Hz 50(45-55),60(55-65)Hz
Total Current Harmonic Distortion THDi <3% (of nominal power) <3% (of nominal power) <3% (of nominal power) <3% (of nominal power) <3% (of nominal power)
DC Injection Current <0.5% In <0.5% In <0.5% In <0.5% In <0.5% In
Efficiency
Max Efficiency 97.60% 97.60% 97.60% 97.60% 97.60%
Euro Efficiency 97.0% 97.0% 97.0% 97.0% 97.0%
MPPT Efficiency >99% >99% >99% >99% >99%
Equipment Protection
Integrated Protection DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level Type II (DC), Type II (AC) Type II (DC), Type II (AC) Type II (DC), Type II (AC) Type II (DC), Type II (AC) Type II (DC), Type II (AC)
Interface
LCD/LED Display LCD LCD LCD LCD LCD
Communication Interface WiFi, RS485, CAN WiFi, RS485, CAN WiFi, RS485, CAN WiFi, RS485, CAN WiFi, RS485, CAN
Monitor Mode GPRS / WiFi / Bluetooth / 4G GPRS / WiFi / Bluetooth / 4G GPRS / WiFi / Bluetooth / 4G GPRS / WiFi / Bluetooth / 4G GPRS / WiFi / Bluetooth / 4G
General Data
Operating Temperature Range (°C) -40 to +60°C, >45°C Derating -40 to +60°C, >45°C Derating -40 to +60°C, >45°C Derating -40 to +60°C, >45°C Derating -40 to +60°C, >45°C Derating
Permissible Ambient Humidity 0-100% 0-100% 0-100% 0-100% 0-100%
Altitude (m) 3000 m 3000 m 3000 m 3000 m 3000 m
Noise (dB) <65 dB <65 dB <65 dB <65 dB <65 dB
Ingress Protection IP65 IP65 IP65 IP65 IP65
Inverter Topology Non-isolated Non-isolated Non-isolated Non-isolated Non-isolated
Over Voltage Category OVC II (DC), OVC III (AC) OVC II (DC), OVC III (AC) OVC II (DC), OVC III (AC) OVC II (AC), OVC III (DC) OVC II (DC), OVC III (AC)
Cabinet Size (W×H×D mm) 528×793×278 mm (Excluding Connectors and Brackets) 528×793×278 mm (Excluding Connectors and Brackets) 528×793×278 mm (Excluding Connectors and Brackets) 528×793×278 mm (Excluding Connectors and Brackets) 528×793×278 mm (Excluding Connectors and Brackets)
Weight (kg) 65 Kg 65 Kg 65 Kg 65 Kg 65 Kg
Type Of Cooling Intelligent Air Cooling Intelligent Air Cooling Intelligent Air Cooling Intelligent Air Cooling Intelligent Air Cooling
Warranty 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Grid Regulation IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety/EMC Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Download Datasheet

Key Features

Safe

48V low voltage battery, transformer isolation design

Intelligent

6 time periods for battery charging/discharging

Flexible

  • AC couple to retrofit existing solar system
  • Max. 10 pcs parallel for on-grid and off-grid operation; support multiple batteries parallel

Reliable

  • Support storing energy from diesel generator
  • 100% unbalanced output, max. output up to 50% rated power for each phase
